Rear Bumper Parking Assistance System for Light Duty Trucks

Introducing BackZone Truck (250-1903-BZTRK), Rostra’s latest innovation in vehicle parking assistance systems. Designed around the reliable components that customers have come to expect from the BackZone name, BackZone Truck advances the usability of the product line for light-duty trucks. Key features of this new system include the following:

Smaller Audible/Visual Display

Compared to Rostra’s standard BackZone Plus and FrontZone parking assistance systems, the BackZone Truck includes a dashboard/visor mount display with a smaller overall footprint designed to more seamlessly blend into a vehicle’s interior.

25-Foot Truck Harness

Ultrasonic parking assistance systems typically require the use of harness extensions when being installed onto light duty trucks. These extensions introduce multiple points of failure and signal interference. That all changes with BackZone Truck. Each BackZone Truck system includes a weather-proof 25’ harness designed to connect the four bumper-mounted ultrasonic sensors to the BackZone control module in a single run.

Redesigned BackZone Control Module

The BackZone control module packaged with the BackZone Truck system includes an internal electronics redesign necessary to transmit interference-free signals from the bumper-mounted ultrasonic sensors along the 25-foot harness - an industry first.

Full-Color Retail Packaging

Every BackZone Truck system ships with full-color retail packaging. This box design acts as a “silent salesman” in your showroom detailing the myriad features of the BackZone Truck system. Likewise, the box was redesigned with warehouse distributors in mind providing ample blank panel space for multiple UPC label sizes allowing easy storage and quick retrieval from a warehouse.

Safer Parking Decisions

Make safer parking decisions by using a BackZone Truck automotive parking assist to alert you to obstacles closing in on your vehicle while parking.

Ultrasonic Detection

BackZone Truck's advanced ultrasonic-based technology means the system offers consistency on targets of all densities with fewer false alarms.

Paintable Bumper Sensors

The flat black sensors included with each 250-1903-BZTRK BackZone Truck kit can be painted to match the factory fit and finish of your car!

Audible Alarm

The audible alarm included in each BackZone Truck automotive parking assist kit provides a unique way of alerting drivers to nearby unseen obstacles.





BackZone Truck Detection Zones

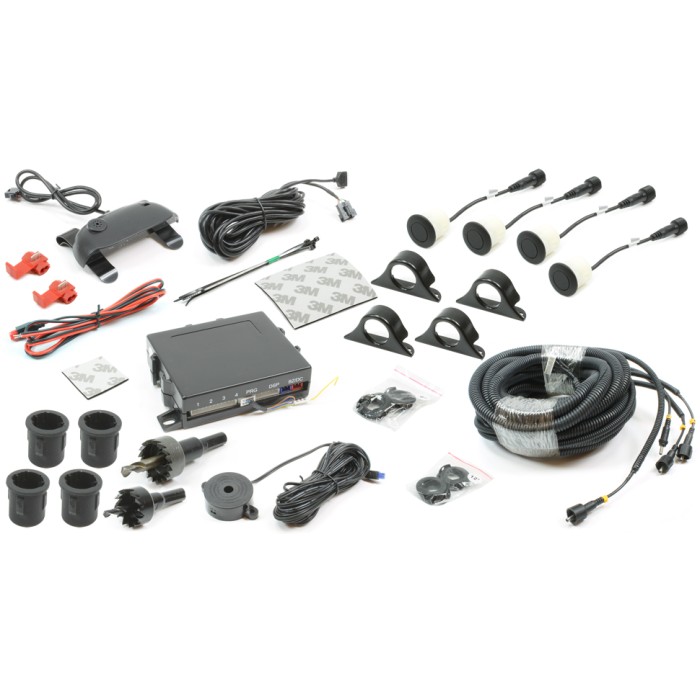

BackZone Truck Included Components

• Full-color retail packaging with space of barcode labels.
• Glossy installation/owner’s manual with high-resolution images.
• Drilling template for accurately aligning sensors to bumper.
• Four flush-mount ultrasonic sensors with paintable bezel.
• Four rubber insulator sensor sleeves for use on steel bumpers.
• Four under-bumper mounts for mounting beneath bumpers.
• Stainless steel under-bumper mounting hardware.
• 25-foot sensor to control module extension harness.
• BackZone Truck control module with advanced firmware.
• Dashboard/Visor audio-visual display *.
• Standalone buzzer (for audio alerts only) **.

• 19-foot module-to-display extension harness.
• 21.5 mm hole saw for use with sensor-only installation.
• 24.5 mm hole saw for use with rubber insulator installation.
• Two-wire harness for making power and ground connections.
• Two quick splice connectors for use on power and ground wires.
• Cable ties for securing extension harness to vehicle body.
• Four 6-degree angled sensor bezels for angled bumper covers.
• Four 12-degree angled sensor bezels for angled bumper covers.
• 3M VHB mounting tape to secure control module in place.
• 3M VHB mounting tape for securing dashboard display in place.



* Options for Off, Visual Display Only, or Visual Display and Audio Output (90 dB).

** Options for High Audio Output (105 dB) and Low Audio Output (90 dB).
